Fixed 5-Gas Detector for LEL CO2 CO H2S O2 Pump Suction

Informação Básica

Lugar de origem:	CHINA
Marca:	SAFEGAS
Certificação:	ATEX/IECEX
Número do modelo:	YT-98H

Quantidade de ordem mínima:	1
Preço:	negociável
Detalhes da embalagem:	Carton (432715cm)
Tempo de entrega:	3 dias de trabalho
Termos de pagamento:	T/T, Western Union
Habilidade da fonte:	3000 peças por mês

Melhor preço contacto

Informação detalhada

Gás detectado:	LEL, CO2, CO, H2S, O2	Princípio de detecção:	Catalisador (LEL), Electroquímico (O2/CO/H2S), Raios Infrarroxos (CO2)
Poder:	12-24V DC	Precisão:	≤ ± 2-5%Fs
Tempo de resposta (T90):	15-30s	Repetibilidade:	≤ ± 1%
Fluxo da bomba:	0,35-0,5 l/min	Temperatura:	–20 ℃～ 55 ℃
Umidade (sem condensação):	0-95% UR	Alarme opcional:	Toque de alarme, exibição do estado do alarme, os valores do alarme são ajustáveis
Caminho de amostragem:	Sucção da bomba
Destacar:	5-gas detector with pump , fixed gas detector for LEL CO2 CO H2S O2 , multi gas detector 0.35-0.5L/min pump

Descrição de produto

Fixed 5-Gas Detector for LEL CO2 CO H2S O2 Pump Suction

Product Overview

The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring a non-contact magnetic wand design, it's suitable for installation and operation in explosion-proof areas and the Oil & Gas industry. The device offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.

Key Features

Detects up to 6 gases simultaneously, reducing multiple installations in complex environments
2.4-inch industrial-grade high-definition color screen (320*240 resolution, 120° viewing angle)
Optional wireless module for cloud data upload with SMS alerts and unlimited transmission distance
Internal suction pump for fast response times
Full software automatic verification and zero calibration functions for reliable monitoring
Standard 4-20mA current signal, RS485 modbus signal, and relay signal output

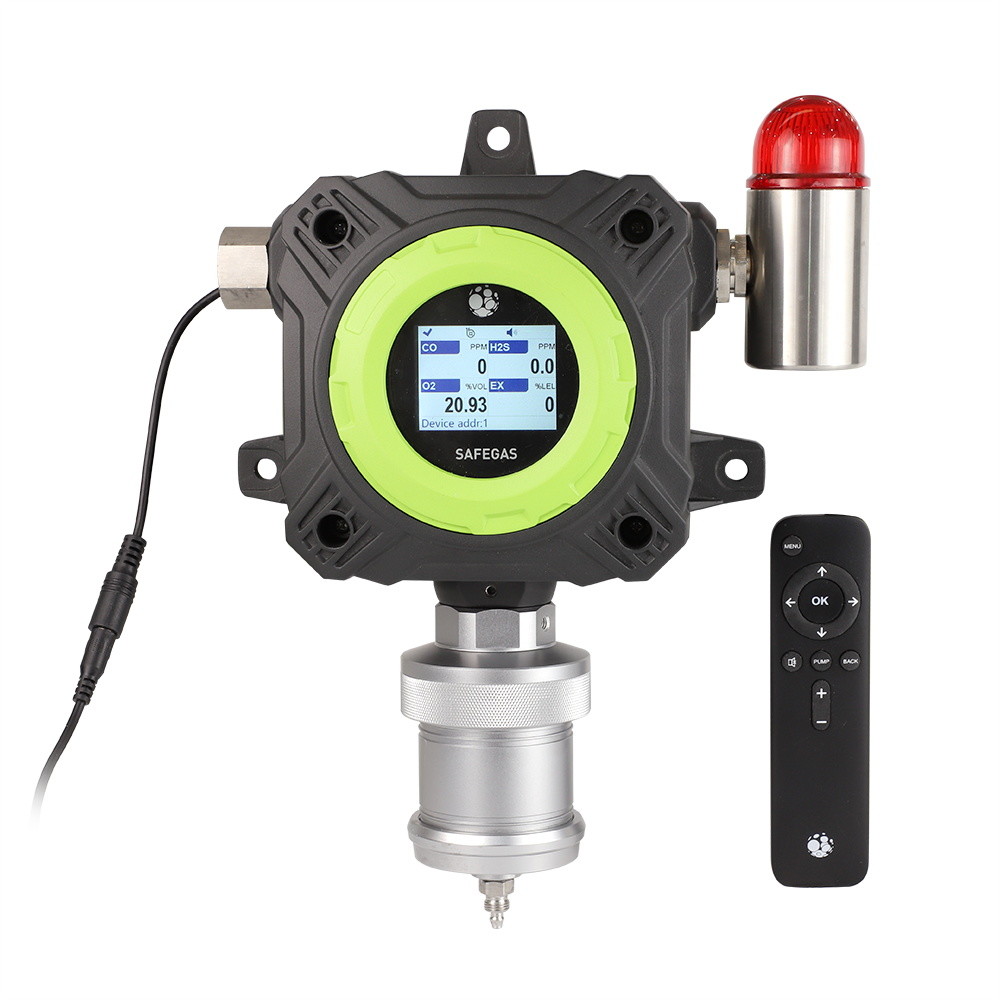

Infrared remote control for detector operation and settings modification
Optional sound and light alarm function when reaching alarm points

Product Images

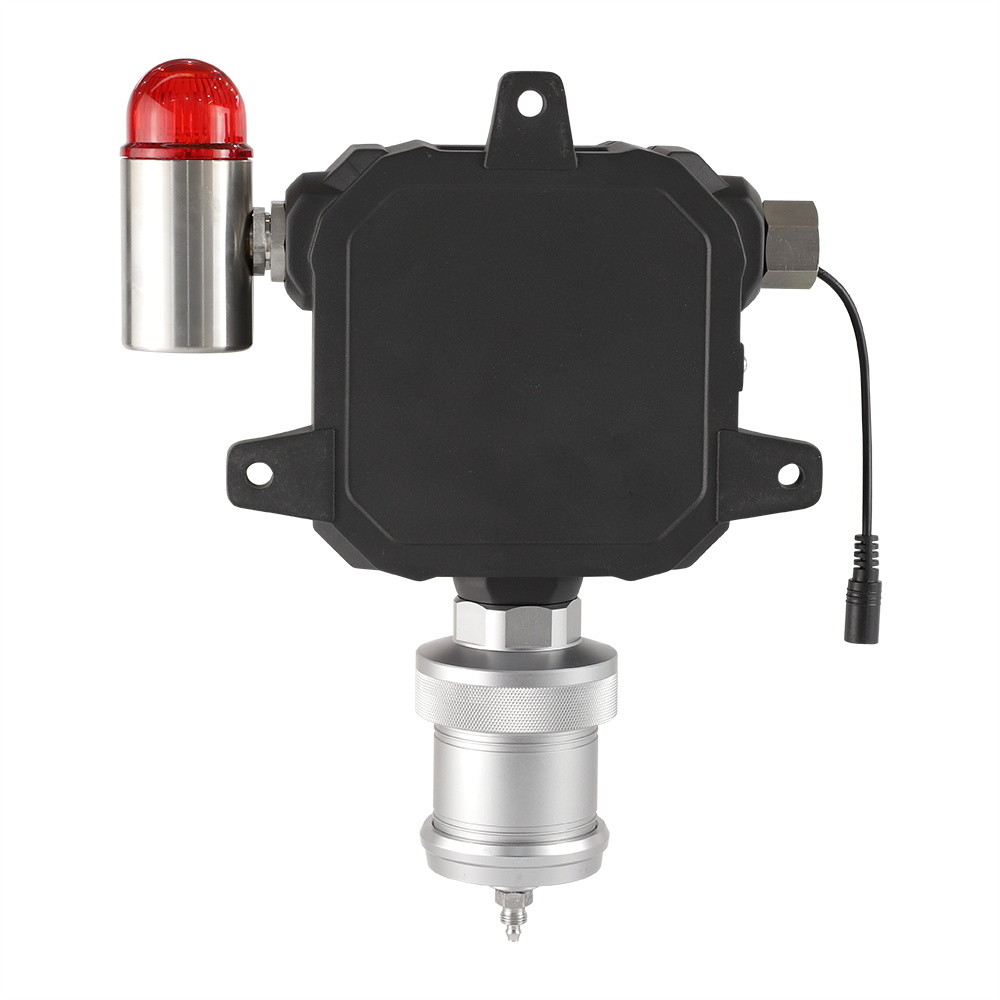

YT-98H (with display)

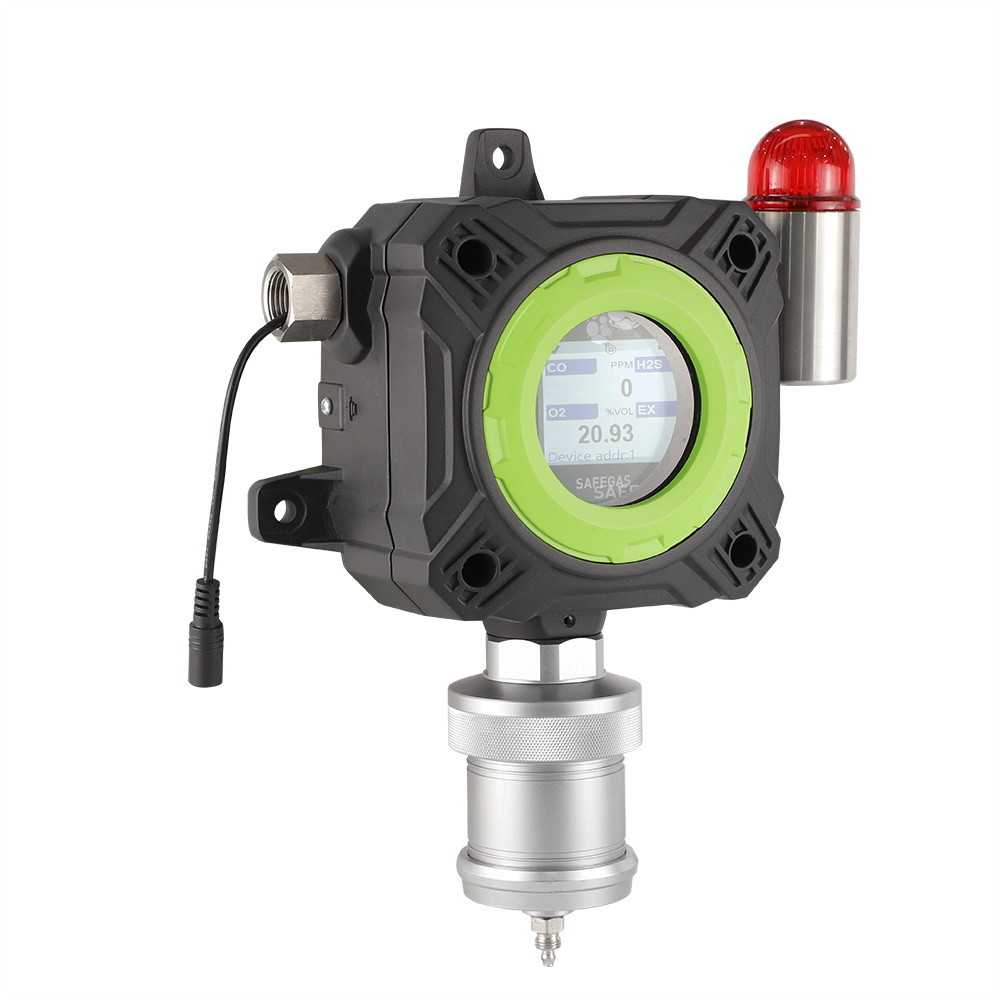

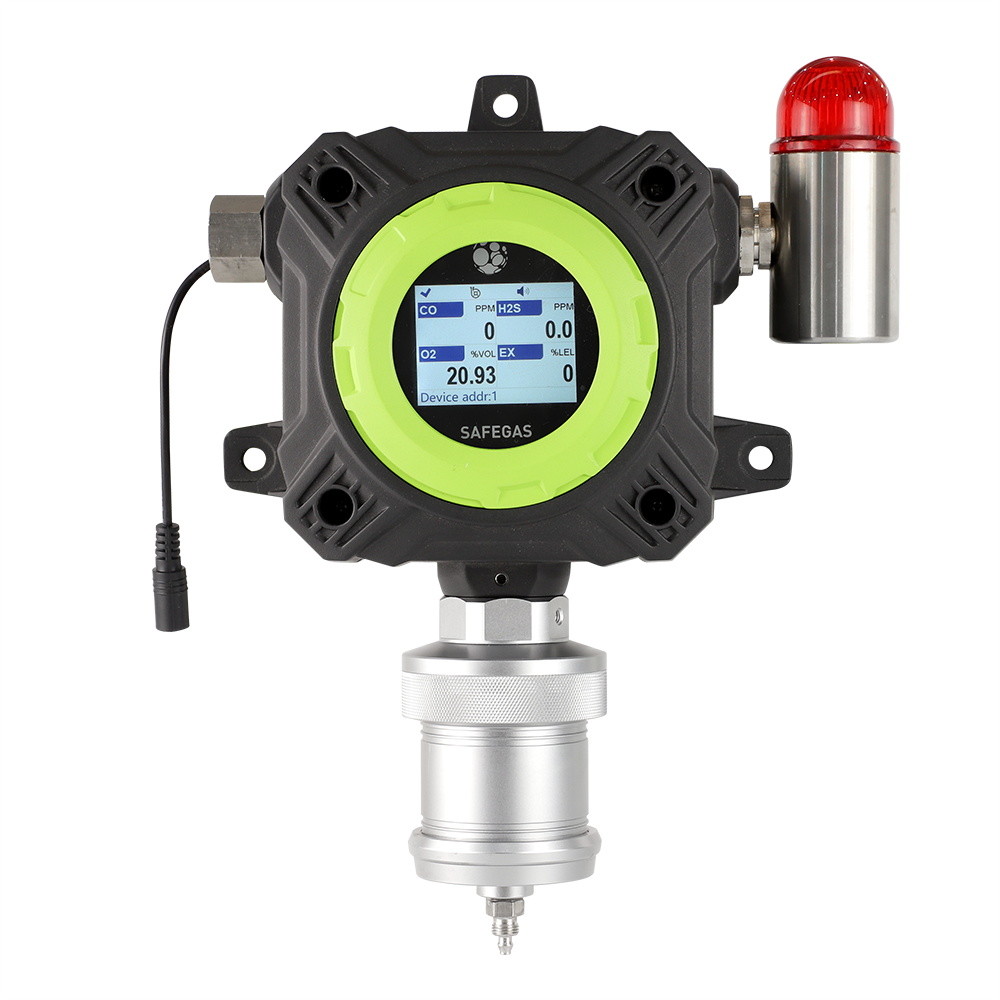

YT-98H-A (with display and alarm light)

Technical Specifications

Gas Detected	LEL, CO2, CO, H2S, O2
Detection Principle	Catalytic (LEL), Electrochemical (O2/CO/H2S), Infrared Ray (CO2)
Installation Method	Wall-mounted, piping type, flow-type (according to detected environment)
Measure Range	LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm, CO2: 0-5000PPM
Resolution	LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm, CO2: 0-5000PPM
Accuracy	≤±2-5%FS (depending on specific sensor)
Signal Output	4-20MA, RS485, relay
Response Time (T90)	15-30s (depending on specific sensor)
Recovery Time	≤10S
Repeatability	≤±1%
Display	2.4-inch color display, resolution 320*240
Operating Language	English/Chinese
Display Content	Gas molecular formula, concentration, unit, pump status, etc
Temperature	-20ºC~55ºC
Humidity	0-95%RH
Explosion-Proof	IECEX:Ex db IIC T6 Gb ATEX:Ex db IIC T6 Gb
Degree of Protection	IP66
Alarm Mode	Sound, light
Operating Time	24h
Dimensions	43×27×15cm
Weight	4.6kg

Why Choose Our Product?

R&D team with over 25 years of experience
Company certifications: ISO9001, ISO45001
Product certifications: IECEx (the only one in China), ATEX, CE
Fast delivery: 5-7 days
Annual production capacity: 80,000 units
Professional sales staff providing 24/7 service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. Focusing on "gas detector" as our core product, we offer complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

Our products have obtained international explosion-proof certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. These certifications ensure product quality comparable to international brands like Honeywell, MSA, and RAE, but with more competitive pricing.

Our Partners

We are proud to have worked with industry leaders including Huawei, Coca-Cola, Samsung, Nestlé, and more.
