Lugar de origem: | CHINA |
---|---|
Marca: | SAFEGAS |
Certificação: | ATEX/EMC/IECEX |
Número do modelo: | Sky3000 |
Quantidade de ordem mínima: | 1 |
Preço: | negociável |
Detalhes da embalagem: | Mala de alumínio |
Tempo de entrega: | 3-5 dias de trabalho |
Termos de pagamento: | T/T. |
Habilidade da fonte: | 1000 peças por mês |
Gás detectado: | Para para ser especificado | Princípio de detecção: | Para para ser especificado |
---|---|---|---|
Alcance de medição: | Especificado de acordo com a aplicação. | Resolução: | Especificado de acordo com a aplicação. |
Tempo de resposta: | ≤20 segundos | Precisão: | ≤ ± 1-5%F.S, excepto gases especiais |
Linguagem: | Chinês/inglês/russo/polonês (mais idioma pode ser personalizado) | Teste e calibre automaticamente após a energia: | Incluindo redefinição, valor máximo (máximo), valor mínimo (min), Valor Stel, TWA |
Unidade: | Ppm, mg/m³, %lel, %vol | Mostrar: | LCD (160 x 96), 180 ° Girar |
Registro de dados: | 100.000 leituras, o intervalo de armazenamento é ajustável de 5 a 3600 segundos, os dados podem ser | ||
Destacar: | portable gas detector with pump,multi gas detector with alarm,gas detector with man down function |

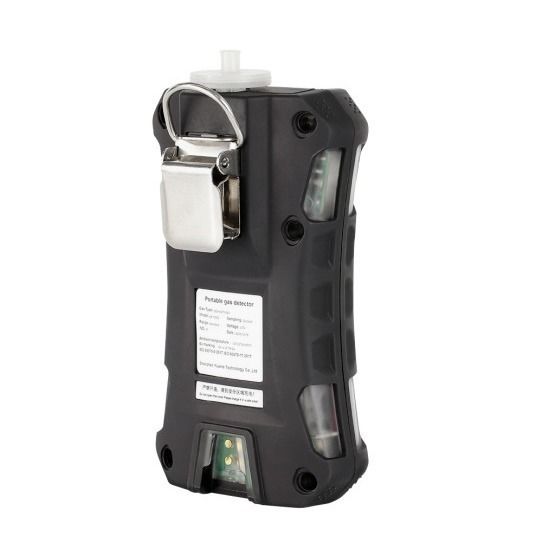

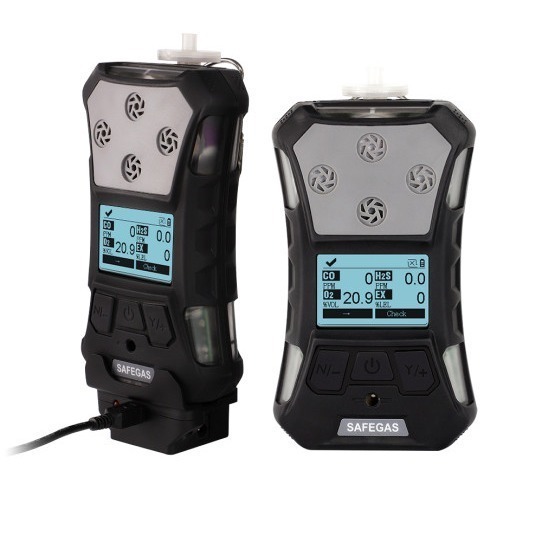

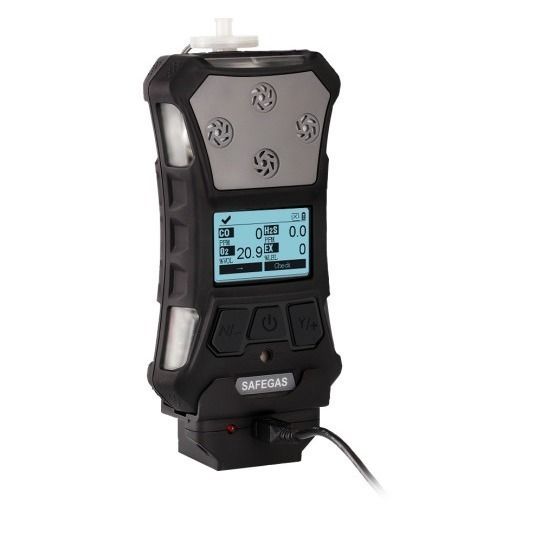

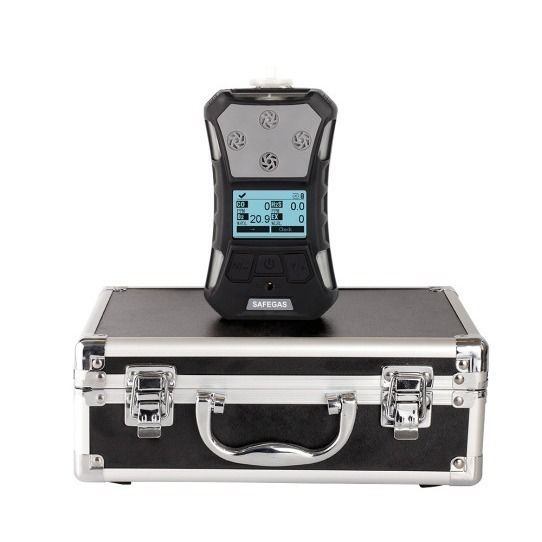

SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It's with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.
Parameter | Specification |
---|---|
Gas Detected | To be specified |
Detection Principle | To be specified |
Measure range | Specified according to application. |
Resolution | Specified according to application. |
Response time | ≤20 seconds |
Precision | ≤±1-5%F.S except for special gases |
Language | Chinese/English/Russian/Polish (More language can be customized) |
Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | PPM, mg/m³, %LEL, %VOL |
Display | LCD (160 x 96), 180° rotate |
Backlight | Turned on automatically when alarming, the backlight time can be manually set |
Data record | 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software |
Alarm | 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm |
Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
Working hours | More than 15 hours in continuous pumping mode |
Charger | Travel charger with DC interface, charging time ≥ 4 hours |
Working temperature | -20℃~+50℃ |
Explosion-proof grade | IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga |
Humidity | 10~90%RH (no condensation) |
Certification (EU regulations) | 2004/34/UE (ATEX) |
Protection grade | IP67 |
Environmental pressure | 86~106Kpa |
Size | 157×84.5×59.5mm (including back clip/water trap filter) (length × width × height) |
Weight | 365g (including battery, belt clip and filter) |
Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team.
The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(20.00%),North America(17.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Central America(5.00%),Africa(3.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
We have independent dust-free production workshop, modern production equipment, and professional staff. We implement flexible and competitive price and diversified sales strategy. We provide 24h/day service to users, rapid in response, technical guidance.
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,Western Union
Language Spoken:English,Chinese
