SG100-D Series Fixed Multi-Gas Detector
IECEx and ATEX certified fixed diffusion sampling detector with IP66/68 protection, monitoring LEL, CO, H₂S, and O₂ with RS485 alarm functionality.
Product Overview
The SG100-D series represents an innovative intelligent fixed multi-gas detector featuring hot-swappable functionality. Once installed, its hot-swappable design significantly simplifies maintenance procedures. Technicians can replace components such as sensors without shutting down the entire system, ensuring continuous operation in critical gas monitoring scenarios.
This detector delivers high-efficiency gas detection, capable of continuously monitoring up to four different gases within a single unit. Whether detecting common hazardous gases like carbon monoxide, hydrogen sulfide, methane, or oxygen, it provides comprehensive coverage for various industrial and environmental applications.
Safety remains a top priority for the SG100-D series, as demonstrated by its IECEx and ATEX certifications. With an explosion level reaching Ex db IIC T6 intrinsically safe grade, it can be securely deployed in explosive environments such as oil refineries and chemical plants, minimizing ignition risks.
The magnetic wand design enhances both user-friendliness and safety. In explosion-prone areas, operators can use the magnetic wand to navigate menus easily, eliminating the need for direct physical contact while reducing potential spark-induced accidents.

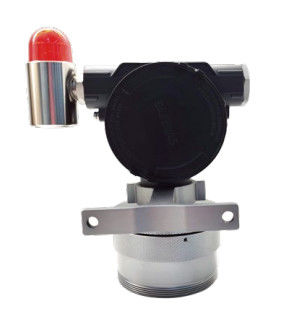

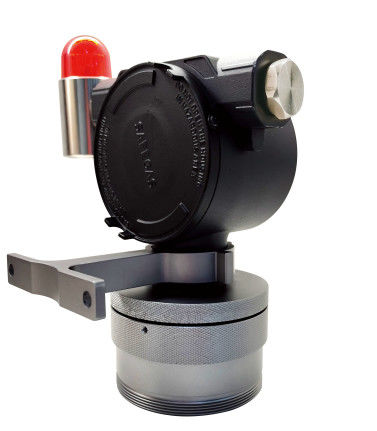

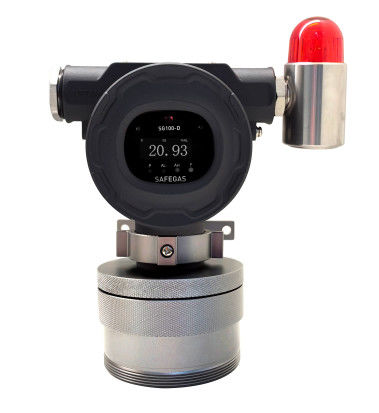

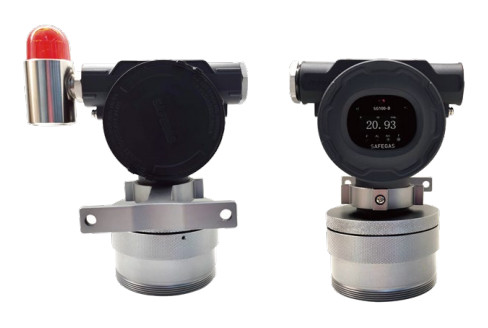

Product Images
Product Advantages
- Superior Protection: Rated IP66/IP68, withstands water jets and dust ingress. Ideal for harsh industrial areas including refineries and outdoor construction sites.
- Advanced Communication: Features 3-wire 4-20 mA, RS485 Modbus, and 2 relay outputs. Optional 4-set configuration suits complex monitoring setups in large-scale plants.
- Wireless Capabilities: LORA provides long-range, low-power coverage for vast areas. 4G enables high-speed, real-time remote data access for urgent alerts.
- Easy Maintenance: Module chamber design eliminates need for complete machine disassembly or return for calibration. Simply replace the sensor chamber to restore proper operation.
- Simple Installation: One-person calibration performed easily using calibration cap. Quick site installation using mounting plate accessory.
Product Specifications
| Detected Gas |
LEL, H₂S, CO, O₂ |
| Principle |
Catalytic Combustion (LEL), Electrochemical (H₂S, CO, O₂) |
| Measure Range |
CO 0-1000PPM, H₂S 0-100PPM, LEL 0-100%LEL, O₂ 0-30%VOL |
| Resolution |
CO 1PPM, H₂S 0.1PPM, LEL 1%LEL, O₂ 0.1%VOL |
| Install Method |
Wall-mounted |
| Events |
1000 sets per channel, downloadable by GPC |
| Precision |
≤±2%FS or ±10% (Depends on sensor) |
| Response Time |
T90<60s (Depends on sensor) |
| Repeatability |
±2%F.S |
| Temperature |
-20℃～50℃ |
| Humidity |
10-95%RH (non-condensing) |
| Explosion-Proof |
IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Degree of Protection |
IP66/IP68 |
| Power |
12-30V DC |
| Dimensions |
178*129*70mm |
| Weight |
1.4kg (No mounting bracket, alarm light) |
| Approval |
CE, CNEX explosion proof certificate, CMC (China Metrology Certification), IECEx, ATEX |
| Warranty |
12 months |
Standard Configuration
- Gas detector: 1 piece
- Magnetic wand: 1 piece
- User manual: 1 piece
- Certificate of Conformity/Warranty Card: 1 piece
- Mounting plate: 1 piece
- M4 bolt: 3 pieces
- M4 nut: 3 pieces
- M4 Screw pad: 3 pieces
- M4 flat mat: 3 pieces
Why Choose Us?
- Expert R&D Team: Over 25 years of industry experience
- Company Certification: ISO9001, ISO45001 certified
- Product Certification: IECEx (the only one in China), ATEX, CE
- Fast Delivery: 5-7 days standard delivery time
- Production Capacity: 80,000 units annually
- Professional Support: 7*24 hours service from experienced sales staff
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) focuses on the design, production, and sales of gas detection equipment and systems for 16 years. With "gas detector" as our core product, we have developed complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality. We hold more than 100 independent intellectual property patents in design and development. Our production features skilled technical workers and complete industrial lines, ensuring full process quality control. Our company possesses rich overseas sales experience and a professional sales team, providing customers with 7*24h considerate service.
Our professional R&D department has been engaged in gas detection industry for approximately 25 years. They possess professional knowledge and rich experience, enabling them to provide customers with comprehensive technical after-sales service.
We implement a strict quality management system and adhere to the principle of quality first as our core production philosophy. Consequently, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, enabling their use in hazardous areas such as mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited from use in dangerous areas.
Our core components, including ICs and sensors, utilize imported brands like Honeywell, CITY and Alpha. This enhances our product accuracy, stabilizes service life, ensures detection precision, and protects customer safety.
Our complete product line and stable inventory enable fast delivery. Orders under 10 pieces typically ship within 3 days. For quantities exceeding 100 pieces, we can generally deliver within half a month under normal circumstances.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
