Name: 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Sky3000
Price: 2,210.00 USD
Availability: InStock

Informação detalhada

gás:	O2 LEL DO CO H2S	Faixa de medição:	0-1000PPM 0-100PPM 0-30%VOL 0-100%LEL
Resolução:	1PPM 0,1PPM 0,1%VOL 1%LEL	Tipo de sensor:	Eletroquímico
Método de amostragem:	Difusão	Material:	ABS + estojo de couro
Mostrar:	Matriz de pontos monocromática 128*128 display gráfico LCD	Modo de alarme:	som, luz e vibração
Bateria:	Bateria de lítio recarregável de 3,7V, com capacidade de 2500mAh	unidade:	ppm, mg/m3, %VOL, %LEL
Tamanho de pacote único::	131cm83cm35cm	Peso::	240g
Grau de proteção:	IP65

Descrição de produto

YT-1200H Portable 4-in-1 Gas Detector

Product Overview

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.

The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.

Key Features

Standard event logging with 100 records viewable directly on device
Smart, lightweight design for comfortable wearing
LCD dot matrix display for clear visibility
One-button factory reset functionality
Ultra-high buzzer alarm with sound, light, and vibration alerts
Optional data logging with PC export capability
Large capacity rechargeable battery for extended operation
Integrated alligator clip for convenient portability
Durable ABS housing with comfortable tactile finish

Technical Specifications

Parameter	Value
Gas Detected	Specified according to application
Detection Principle	Diffusion
Sensor Type	Specified according to application
Measuring Range	Specified according to application
Resolution	Specified according to application
Precision	<1-5% F.S.
Display	Monochrome dot matrix 128×128 LCD graphic display
Backlight	Settable time; auto-on during alarm
Data Logging	Optional: 100,000 readings (10-3600 sec interval)
Event Logging	100 event records (standard, viewable on device)
Language	Chinese / English
Alarm Type	Sound, light, vibration
Battery	3.7V rechargeable lithium battery, 2500mAh
Working Time	14h continuous (4 gases); 200h (without LEL sensor)
Charger	Travel charger; charging time 4-6h
Explosion-Proof Grade	Ex ia IIC T4
Protection Grade	IP65
Working Temperature	10°C - 50°C
Working Humidity	15 - 95% RH
Housing Material	ABS + leather case
Dimensions (L × W × H)	131 × 83 × 35 mm
Weight	240g

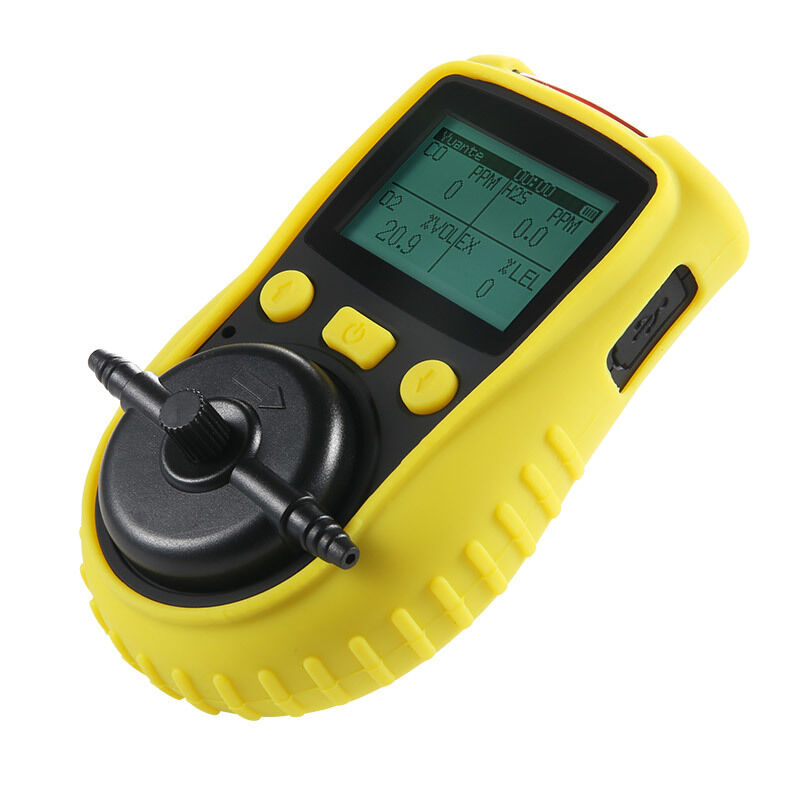

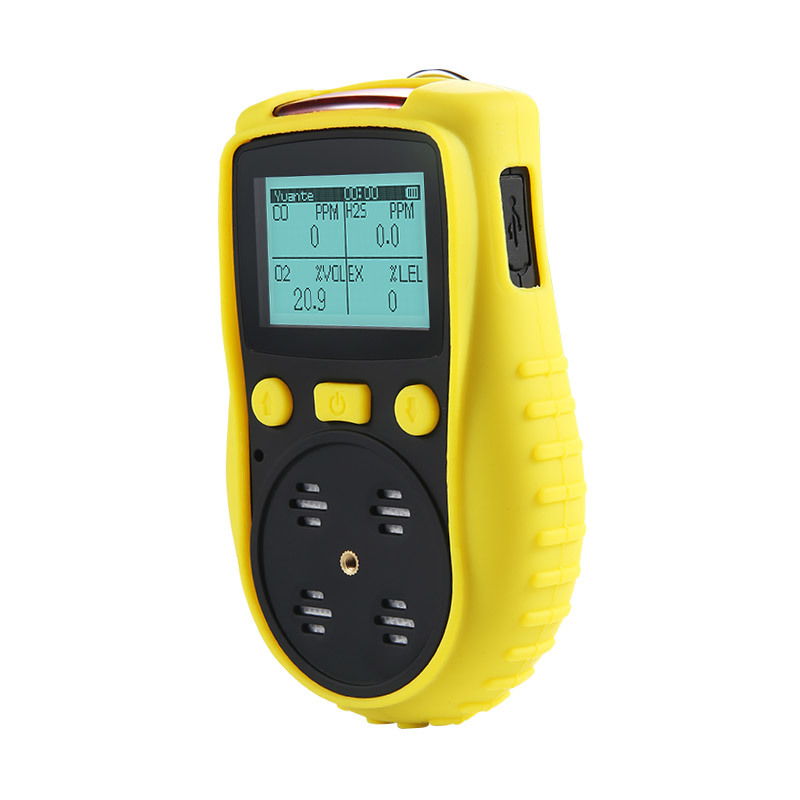

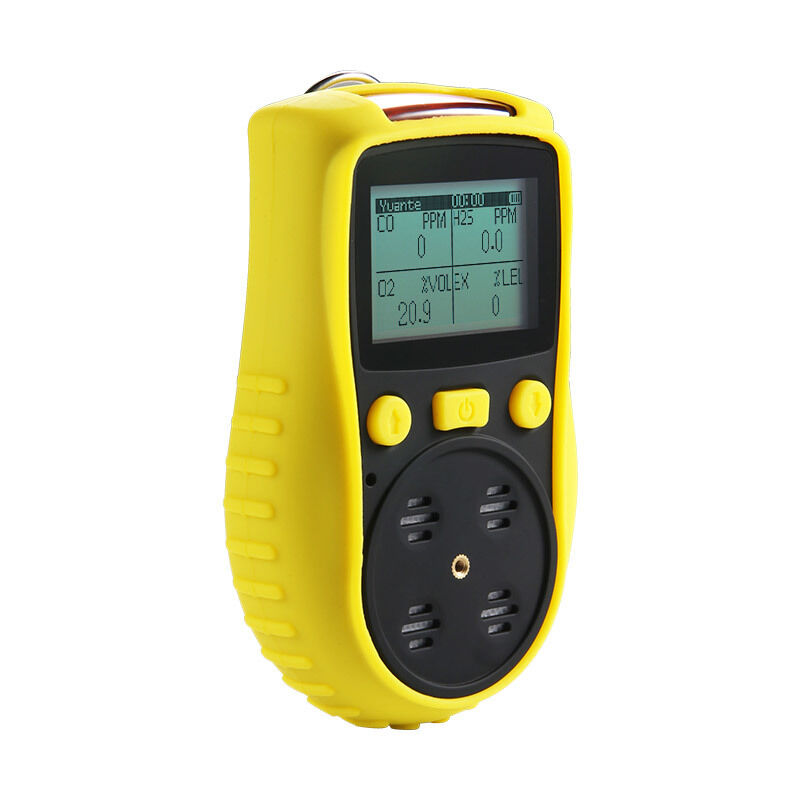

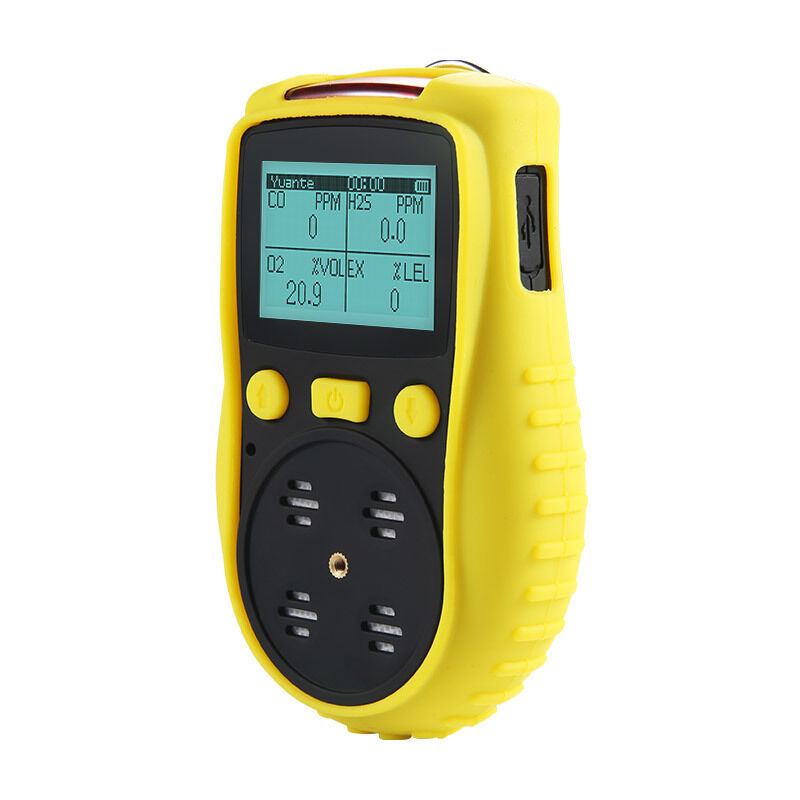

Product Images

Company Advantages

R&D team experience: over 25 years

Company certifications: ISO9001, ISO45001

Product certifications: IECEx, ATEX, CE

Delivery time: 5-7 days

Annual capacity: 80,000 units

Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable Detectors:

Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems:

YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers:

YT-1100H, YT-1600H, YT-1800H

Particle Counters:

AQD5000, SKY6000-PM, SKY2000-PM
