YT-1200H-S
Portable Diffusion Gas Detector for VOC (PID)
Short Description
A mini-sized, low-cost, high-accuracy portable diffusion gas detector for VOC monitoring. Measures 0–100ppm with 0.01ppm resolution using a PID sensor. Features IP65 protection, Ex ia IIC T4 explosion-proof rating, triple alarm (ultra-high buzzer + light + vibration), 2500mAh rechargeable battery (14h runtime with 4 gases), standard event logging (100 records), and optional data logging (100,000 readings). Ideal for industrial hygiene, leak detection, and indoor air quality.
Key Features
Logging & Data
- Standard event logging: 100 event records, viewable on device.
- Optional data logging: 100,000 readings, interval 10–3600 seconds, export to PC via software.
Alarm & Safety
- Triple alarm: ultra-high buzzer + light + vibration.
- One-press factory reset.
- Explosion-proof grade: Ex ia IIC T4.
- Protection grade: IP65.
Display & Operation
- Monochrome dot matrix LCD (128×128) with backlight – auto-on during alarm.
- Languages: Chinese / English.
- Switchable units: ppm, mg/m³, %VOL, %LEL.
Design & Portability
- Mini size, low cost, high accuracy.
- Smart and lightweight – comfortable to wear.
- Back clip + alligator clip for easy carrying.
- Silicone protective case and durable ABS plastic housing.
Technical Specifications
| Parameter |
Value |
| Gas Detected |
VOC (Volatile Organic Compounds) – user specified |
| Detection Principle |
Diffusion |
| Sensor Type |
PID (as specified for VOC) |
| Measuring Range |
0 – 100 ppm |
| Resolution |
0.01 ppm |
| Precision |
<1–5% F.S. |
| Display |
Monochrome dot matrix 128×128 LCD graphic display |
| Backlight |
Settable time; auto-on during alarm |
| Data Logging |
Optional: 100,000 readings (10–3600 sec interval) |
| Event Logging |
100 event records (standard, viewable on device) |
| Language |
Chinese / English |
| Alarm Type |
Sound, light, vibration |
| Battery |
3.7V rechargeable lithium battery, 2500mAh |
| Working Time |
14h continuous (common 4 gases); 200h (without LEL sensor) |
| Charger |
Travel charger; charging time 4–6h |
| Explosion-Proof Grade |
Ex ia IIC T4 |
| Protection Grade |
IP65 |
| Working Temperature |
10°C – 50°C |
| Working Humidity |
15 – 95% RH |
| Housing Material |
ABS + leather case |
| Dimensions |
131 × 83 × 35 mm |
| Weight |
240g |

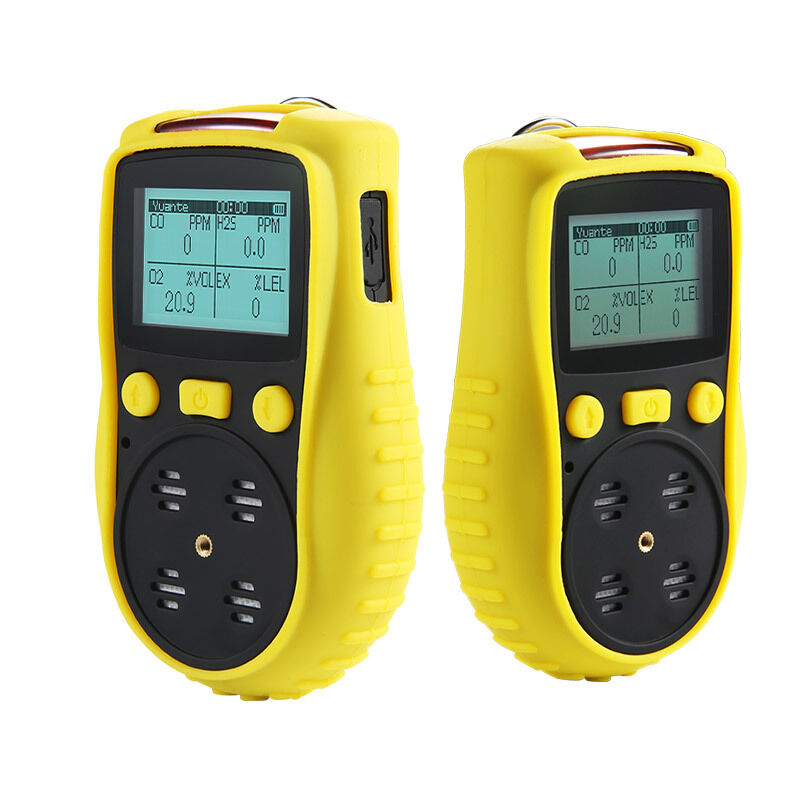

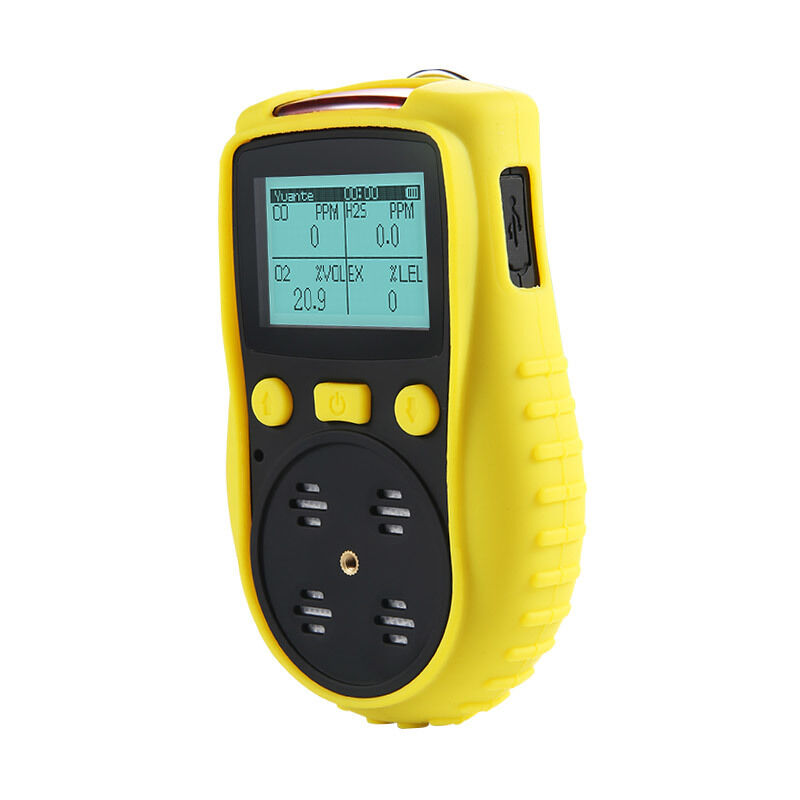

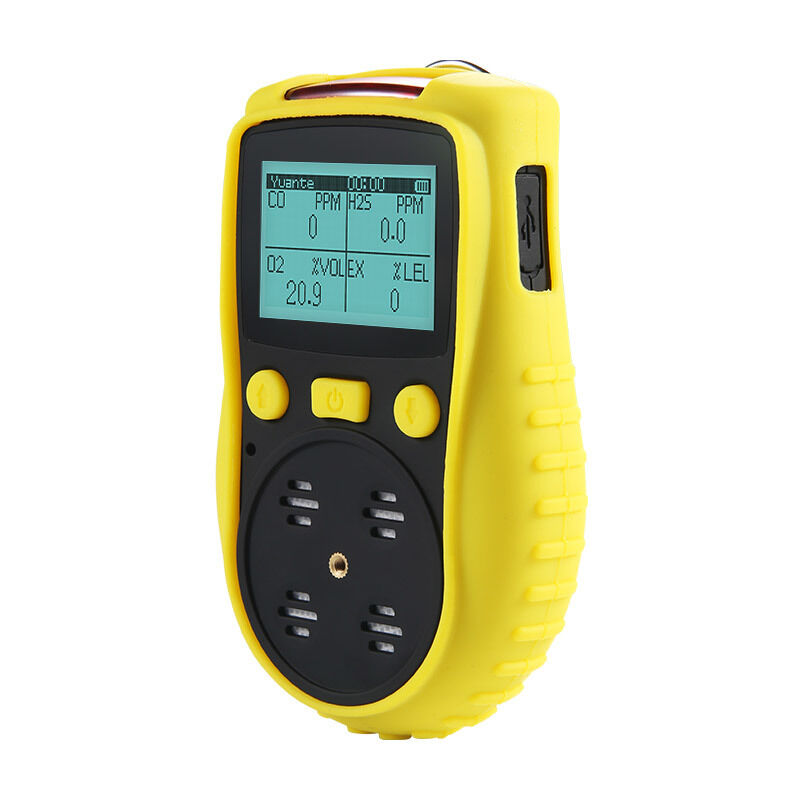

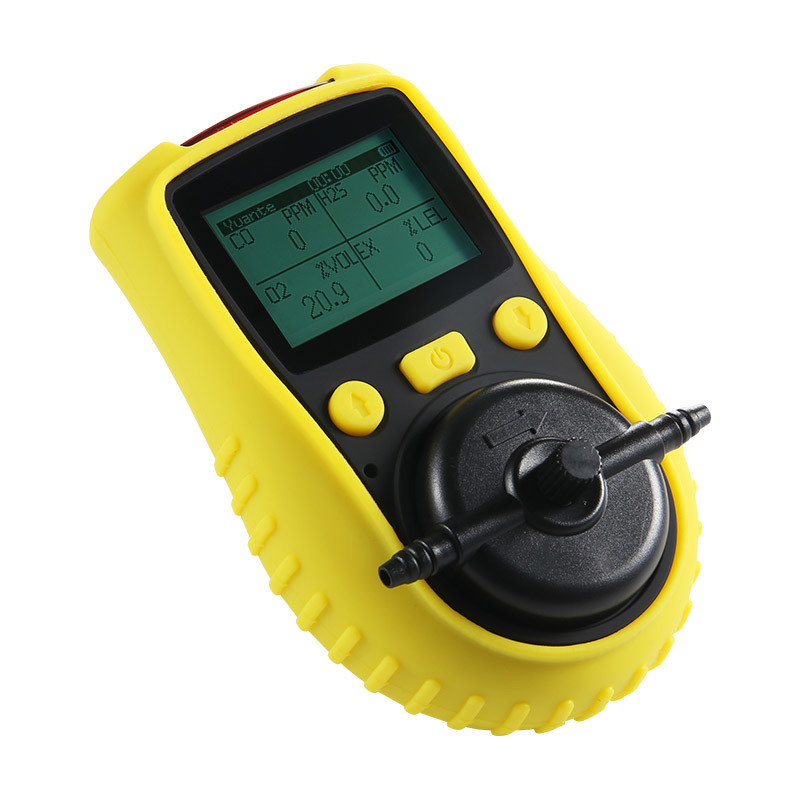

Product Images
Typical Applications for VOC Detection
- Industrial hygiene – Worker exposure monitoring in painting, printing, chemical plants.
- Leak detection – Solvent leaks in refineries, storage tanks, pipelines.
- Indoor air quality – Offices, schools, homes (off-gassing from furniture, paints).
- Confined space entry – Tanks, vessels, sewers.
- Environmental site assessment – Soil vapor intrusion, spill investigation.
- Pharmaceutical manufacturing – Residual solvent checks.
- Automotive repair shops – Paint booth monitoring.
FAQ
1. What is the precision of the YT-1200H-S?
The precision is <1–5% F.S.
2. How long does the battery last?
14 hours continuously (common 4 gases); 200 hours (without LEL sensor).
3. What is the protection rating?
IP65.
4. Does it have data logging?
Optional – 100,000 readings, interval 10–3600 seconds, exportable to PC via software.
5. How many event records are stored?
100 event records, viewable on device.
6. What is the explosion-proof grade?
Ex ia IIC T4.
7. Can I reset the device to factory settings?
Yes – one press to restore factory settings.
8. What languages are supported?
Chinese and English.
9. What is the weight?
240g.
10. What is the charging time?
4–6 hours.
11. What are the alarm types?
Sound, light, vibration.
12. Is the backlight automatic?
Yes – when alarm occurs, the backlight turns on automatically.
13. What is the operating temperature range?
10°C to 50°C.
14. Does it have a back clip?
Yes – the detector comes with a back clip and is protected by a silicone case.
15. What display does it have?
Monochrome dot matrix 128×128 LCD graphic display.
