| Lugar de origem: | CHINA |
|---|---|
| Marca: | SAFEGAS |
| Certificação: | ATEX/EMC/IECEX |
| Número do modelo: | Micmeta |
| Quantidade de ordem mínima: | 1 |
| Preço: | negociável |
| Detalhes da embalagem: | Carton (22*16*11cm) |
| Tempo de entrega: | 3 dias de trabalho |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 3.000 peças por mês |
| Horas de trabalho: | Tempo de espera 24h, tempo de carregamento < 6h | Método de trabalho: | Difusão |
|---|---|---|---|
| Certificação (regulamentações da UE): | Regulamento (CE) n.o 765/2008 do Conselho | Plataforma de calibração: | As operações de modificação, teste de funções e calibração podem ser realizadas na estação de acopla |
| Transmissão sem fio: | Função de transmissão Bluetooth (opcional), função de transmissão Lora (opcional) | Resolusion: | 1%LEL 1PPM 0,1PPM 0,1%VOL |
| Faixa: | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL | Bateria: | 3Bateria de lítio recarregável de 7 V, capacidade de bateria 2300 mA |
| Tempo de resposta (T90): | ≤30s | Grau de proteção: | IP66/IP68 |
| Teste e calibração automática após ligação: | Incluindo auto-teste, calibração, auto-zero, valor máximo (MAX), valor mínimo (MIN), valor STEL, val | Gás detectado: | LEL CO H2S O2 |
| Peso: | 240 g (com bateria de lítio) | Registro de dados: | 1000 conjuntos de registos de dados e 100 conjuntos de registos de eventos |
| Destacar: | ATEX portable gas detector,coal mine toxic gas alarm,combustible gas safety monitor |
||

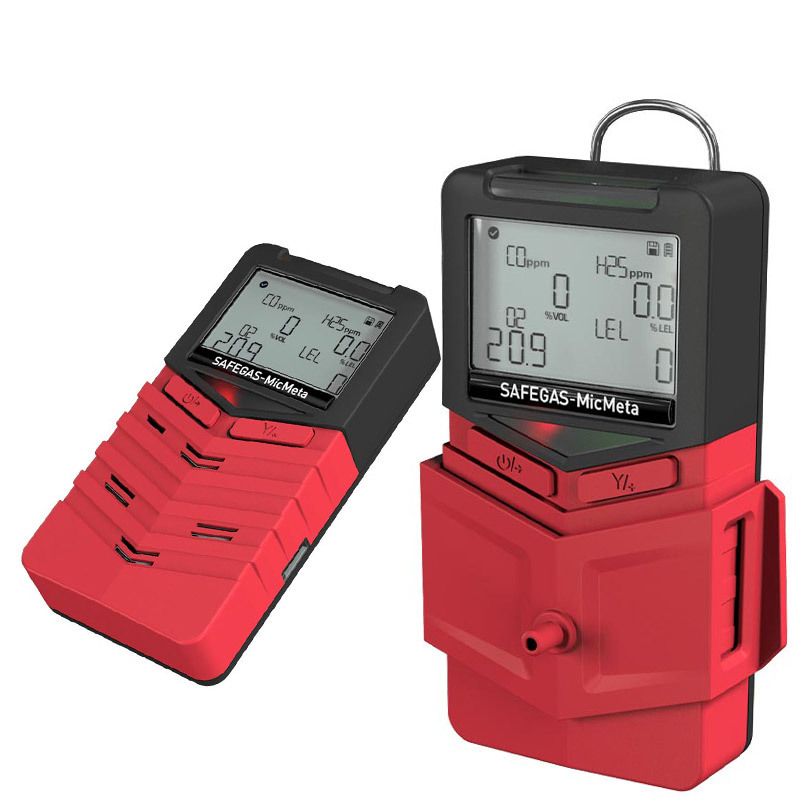

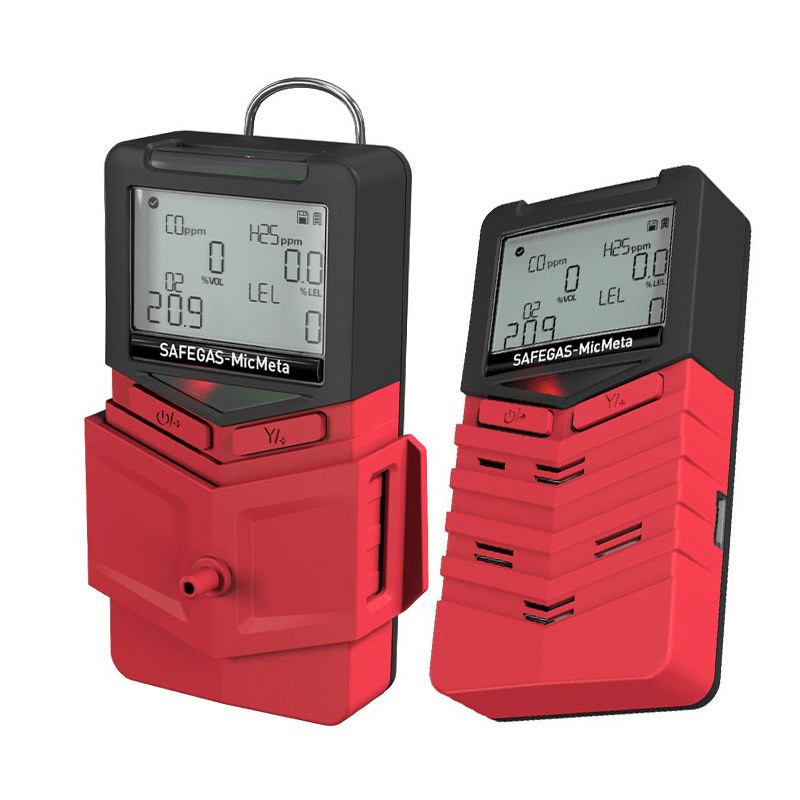

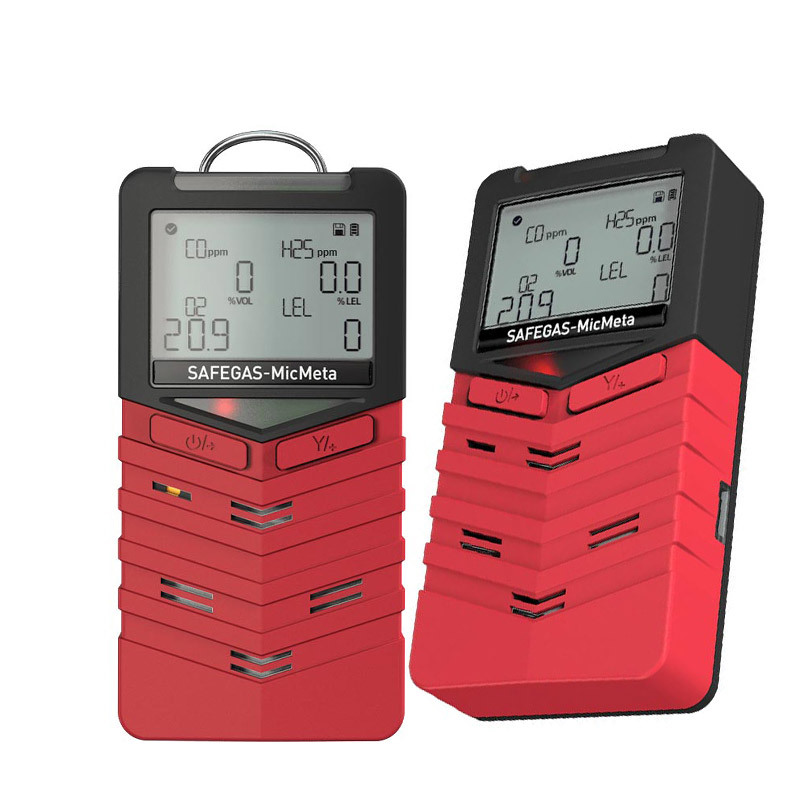

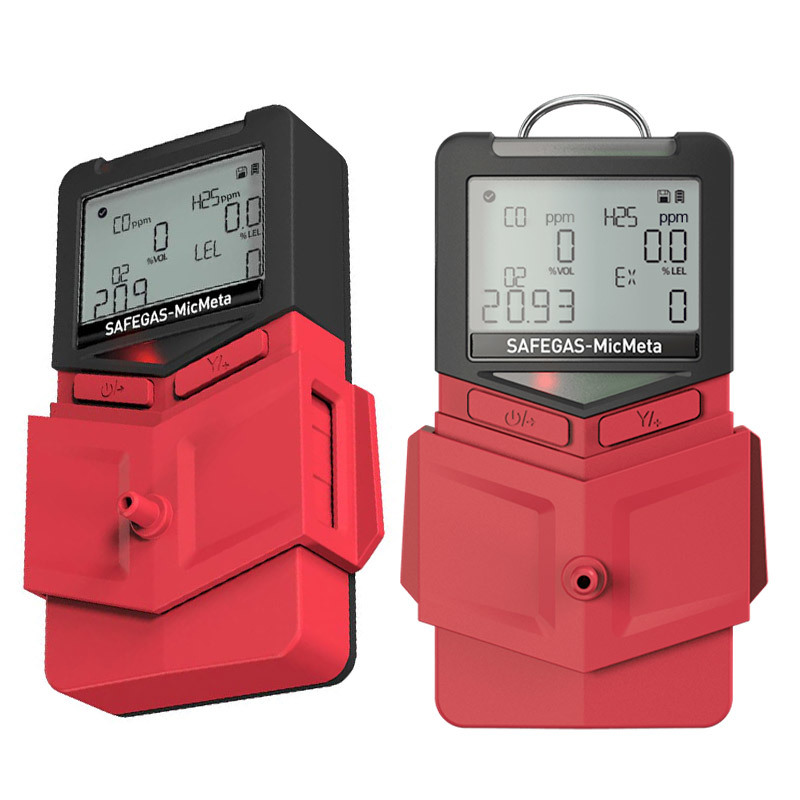

Portable multi model LEL CO H2S O2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas types including multi 4 (CO H2S O2 LEL) gases and support for hundreds of selectable gases. Features include standard man-down alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Parameter | Specification |
|---|---|
| Sampling method | Diffusion |
| Gas type | LEL CO H2S O2 |
| Measure range | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL |
| Resolution | 1%LEL 1PPM 0.1PPM 0.1%VOL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
