Product Description
The SG100 series is a cost-effective, IECEx/ATEX certified fixed gas detector for continuous monitoring of toxic gases, oxygen, flammable gases and VOC. It offers both 2-wire and 3-wire 4-20mA analog output, RS485 Modbus, and optional HART output, making it compatible with most control systems (PLC, DCS, SCADA). Optional wireless data transmission (LoRa/4G) allows remote data review and download.
For ozone (O₃) monitoring – a powerful oxidant used in water treatment, air purification and industrial processes – the SG100 uses an electrochemical sensor with selectable measuring ranges of 0–10, 0–20, 0–50 or 0–100 ppm and a fine resolution of 0.01 ppm. Accuracy is ≤ ±2-5% FS (sensor dependent).

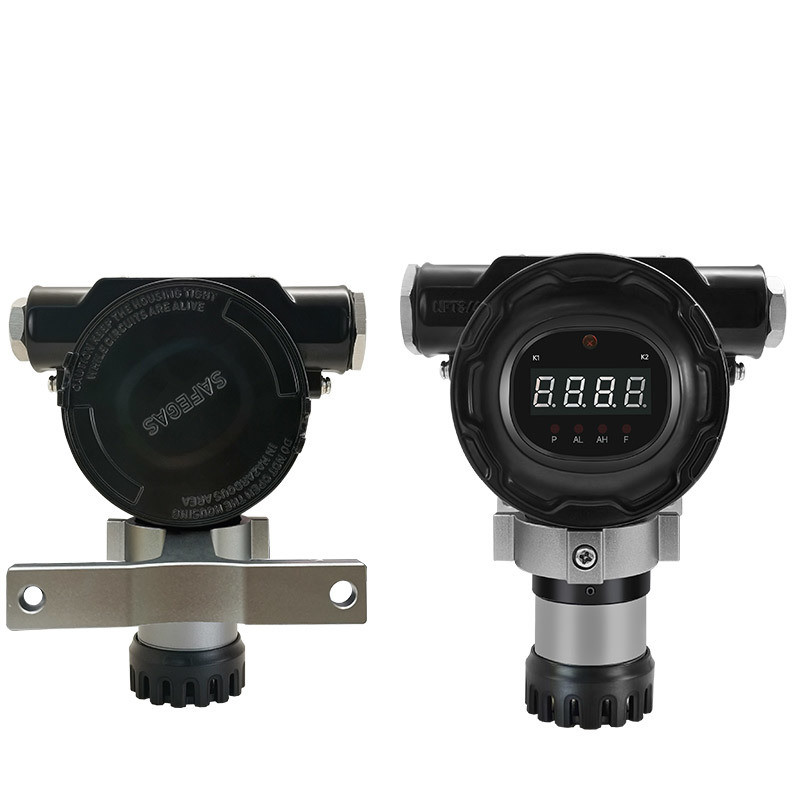

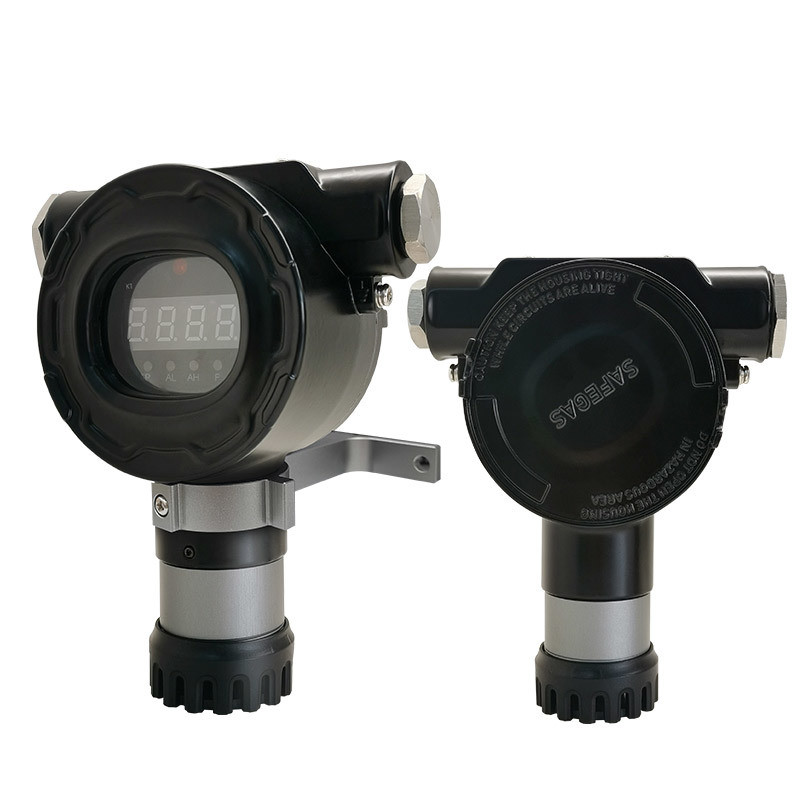

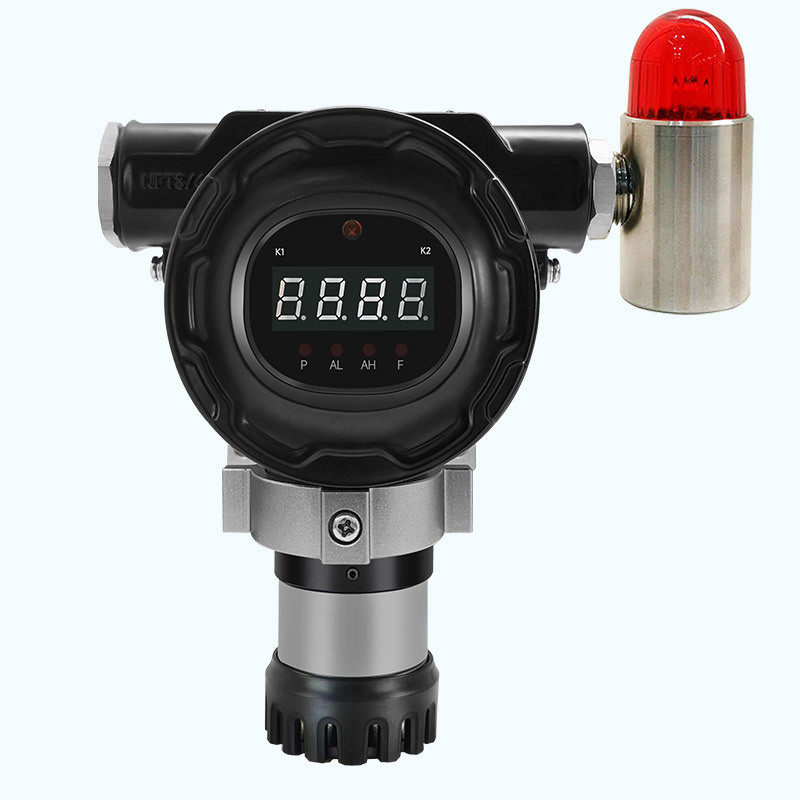

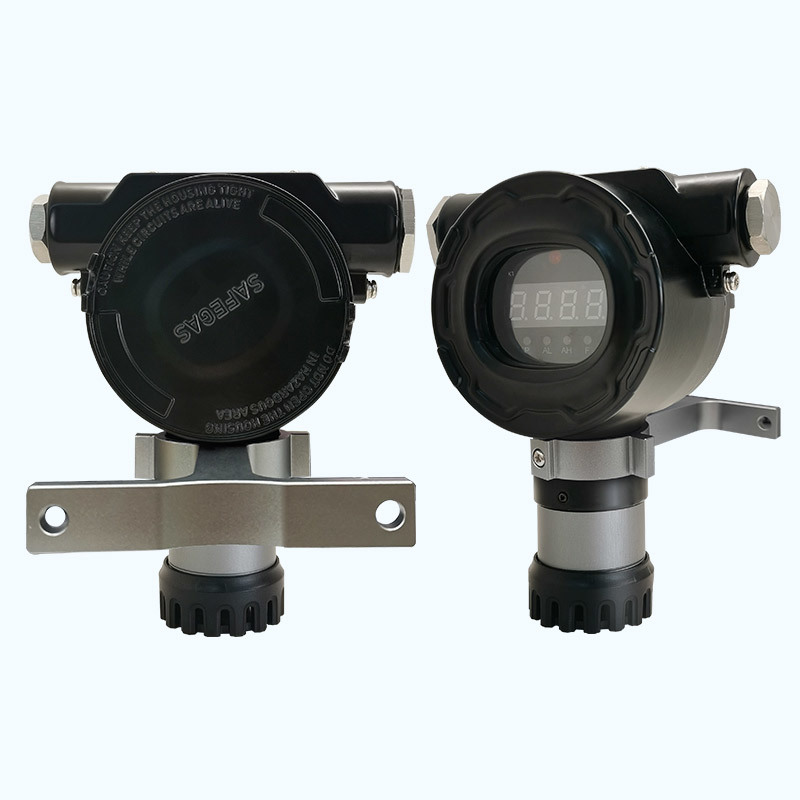

Product Pictures
About O₃ (Ozone)
Ozone is a pale blue gas with a pungent odor. It is widely used for disinfection of drinking water and wastewater, air purification, food processing, and bleaching. However, ozone is a strong oxidizer and harmful to human health: short-term exposure can cause throat irritation, coughing, and reduced lung function; prolonged exposure may lead to chronic respiratory diseases. Reliable ozone detection is essential in treatment plants, industrial hygiene, and indoor air quality monitoring.
Main Product Features
- Electrochemical sensor for O₃ – Ranges 0-10/20/50/100ppm, resolution 0.01ppm.
- Flexible outputs – 2-wire or 3-wire 4-20mA, RS485 Modbus, optional HART.
- Optional 3 relays – Low/high/fault alarm relay for external device control.
- Optional wireless – LoRa or 4G for remote data access.
- Plug-and-play sensor module – Easy replacement, calibration via PC software.
- Non-intrusive configuration – Magnetic wand + remote control (safe for hazardous areas).
- Rugged & protected – IP66/IP68, die-cast aluminum housing, splash guard included.
- Compact & lightweight – 1.0 kg, comes with mounting bracket.
- Wide temperature range – Electrochemical sensor works from -20°C to +50°C.
- Certified safe – IECEx/ATEX Ex db IIC T6 Gb, Ex db ia IIC T6 Gb.
Technical Specifications (for O₃ configuration)
| Parameter |
Value |
| Gas Detected |
O₃ (Ozone) |
| Detection Principle |
Electrochemical |
| Measuring Range |
0 – 10 ppm / 0 – 20 ppm / 0 – 50 ppm / 0 – 100 ppm (selectable) |
| Resolution |
0.01 ppm |
| Accuracy |
≤ ±2-5% FS (depending on sensor) |
| Explosion-Proof Grade |
IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Grade |
IP66 / IP68 |
| Power Dissipation |
Toxic gas <2.5W |
| Communication Mode |
4-20mA (3-wires), RS485, 1-5V; HART (optional) |
| Wireless (Optional) |
LoRa, 4G |
| Working Voltage |
12 – 24V DC |
| Relays (Optional) |
3 relays (low/high/fault alarm relay) |
| Display |
LED display |
| Working Temperature (Electrochemical) |
-20°C to +50°C |
| Working Pressure |
86 – 106 kPa |
| Casing Material |
Die-cast aluminum (standard); S316 stainless steel (optional) |
| Cable Entries |
1 × 3/4 NPT & 1 × M20 |
| Dimensions |
157.8 × 128.8 × 69.6 mm |
| Weight |
1.0 kg |
| Warranty |
1 year |
Typical Applications
- Water & wastewater treatment plants – Ozone disinfection byproduct monitoring.
- Food & beverage industry – Ozone sanitation in bottling and cold storage.
- Indoor air quality – Offices, public buildings with ozone-generating equipment.
- Pharmaceutical manufacturing – Cleanroom sterilization areas.
- Industrial hygiene – Worker exposure monitoring in printing, bleaching and chemical industries.
- Semiconductor fabrication – Ozone used in wafer cleaning.
FAQ
1. What is the accuracy of the SG100 for O₃ detection?
≤ ±2-5% FS (depending on the specific sensor).
2. What output signals are available?
Standard: 4-20mA (3-wires), RS485 Modbus, 1-5V. Optional: HART.
3. Does it have wireless capability?
Yes – optional LoRa or 4G for remote data transmission.
4. Can I add relay outputs?
Yes – optional 3 relays (low/high/fault alarm relay).
5. What is the protection rating?
IP66/IP68 – waterproof, dustproof and submersible.
6. What is the explosion-proof grade?
Ex db IIC T6 Gb / Ex db ia IIC T6 Gb (IECEx/ATEX).
7. How do I configure the detector in a hazardous area?
Use the magnetic wand or remote control – no need to open the enclosure.
8. How do I calibrate the sensor?
The plug-and-play sensor module supports calibration via Safegas PC software.
9. What is the warranty period?
1 year.
10. What is the weight?
1.0 kg (comes with mounting bracket).
